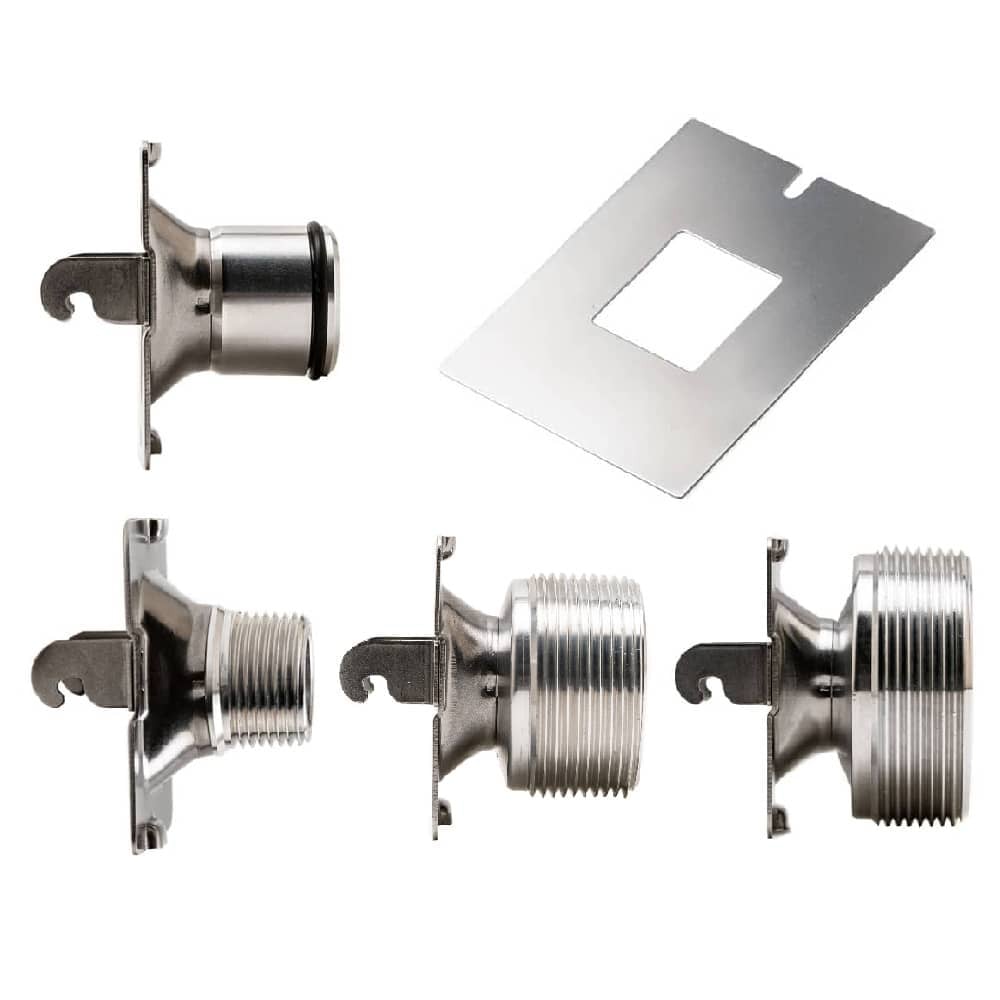

Billows? Mounting Kit

Billows is made to work with most smokers. Some applications may require an optional mounting kit.

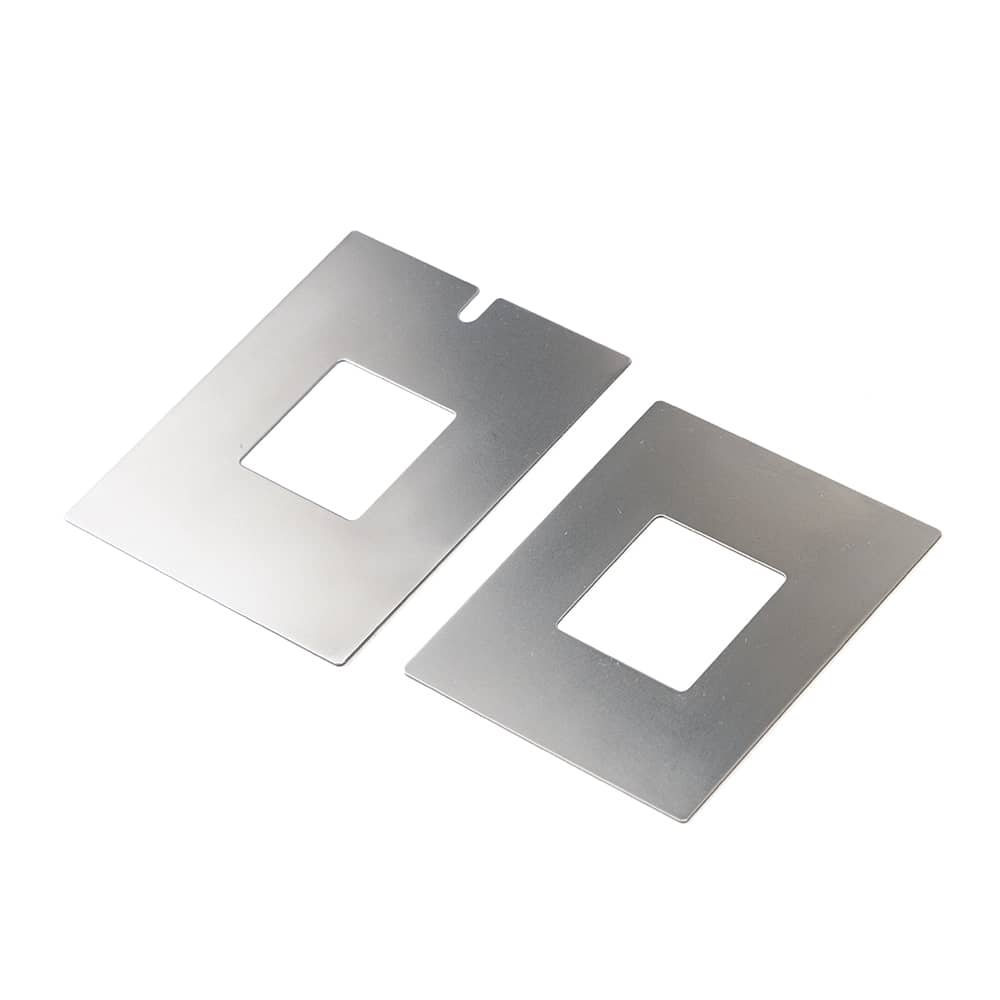

Kamado style smoker Mounting Plates for Billows
Large Plate: 3.54 H x 3.01 W x 0.01 D inches (90 H x 76.5 W x 0.5 D mm)
Small Plate: 3.11 H x 2.75 W x 0.01 D inches (79 H x 70 W x 0.5 D mm)

Both Mounting Plates have a 1.25 x 1.25 inch (33 x 33mm) center opening.

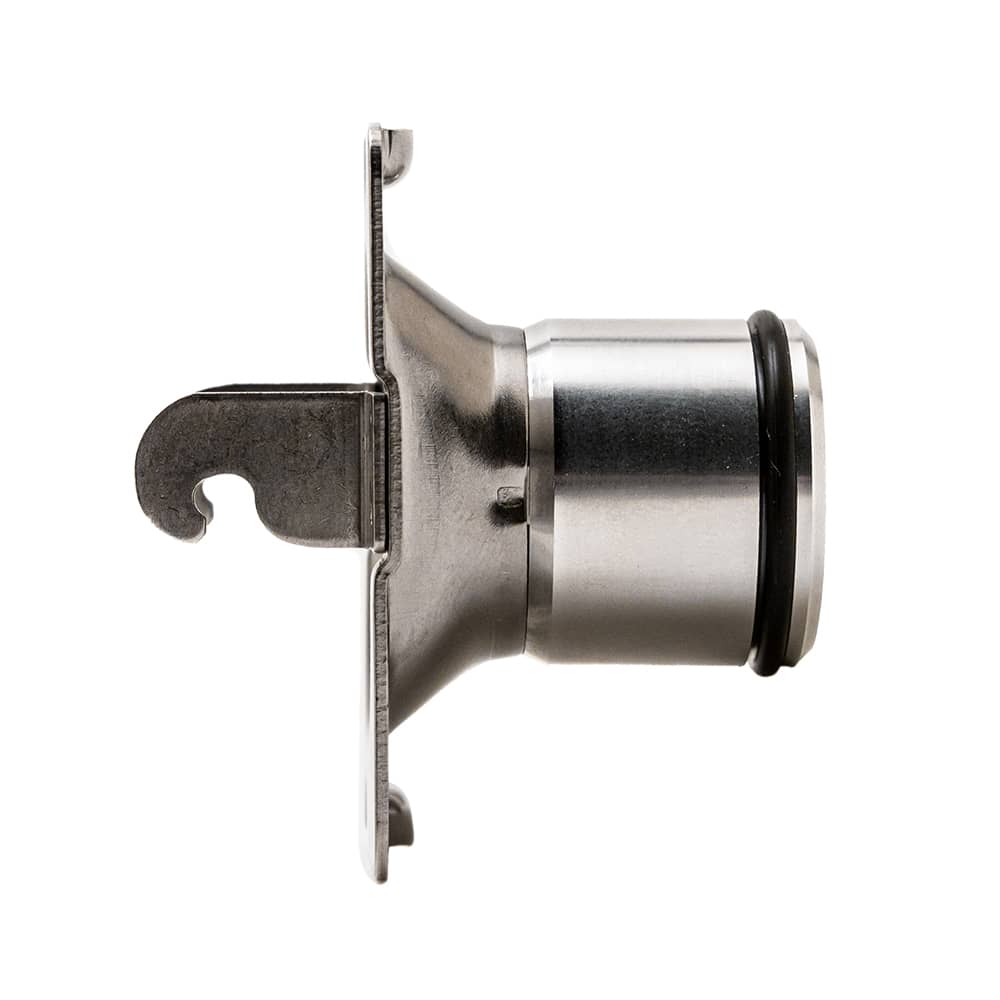

Universal Billows Mounting Kit
Fits factory installed ports measuring 1.18 (30mm) dia.

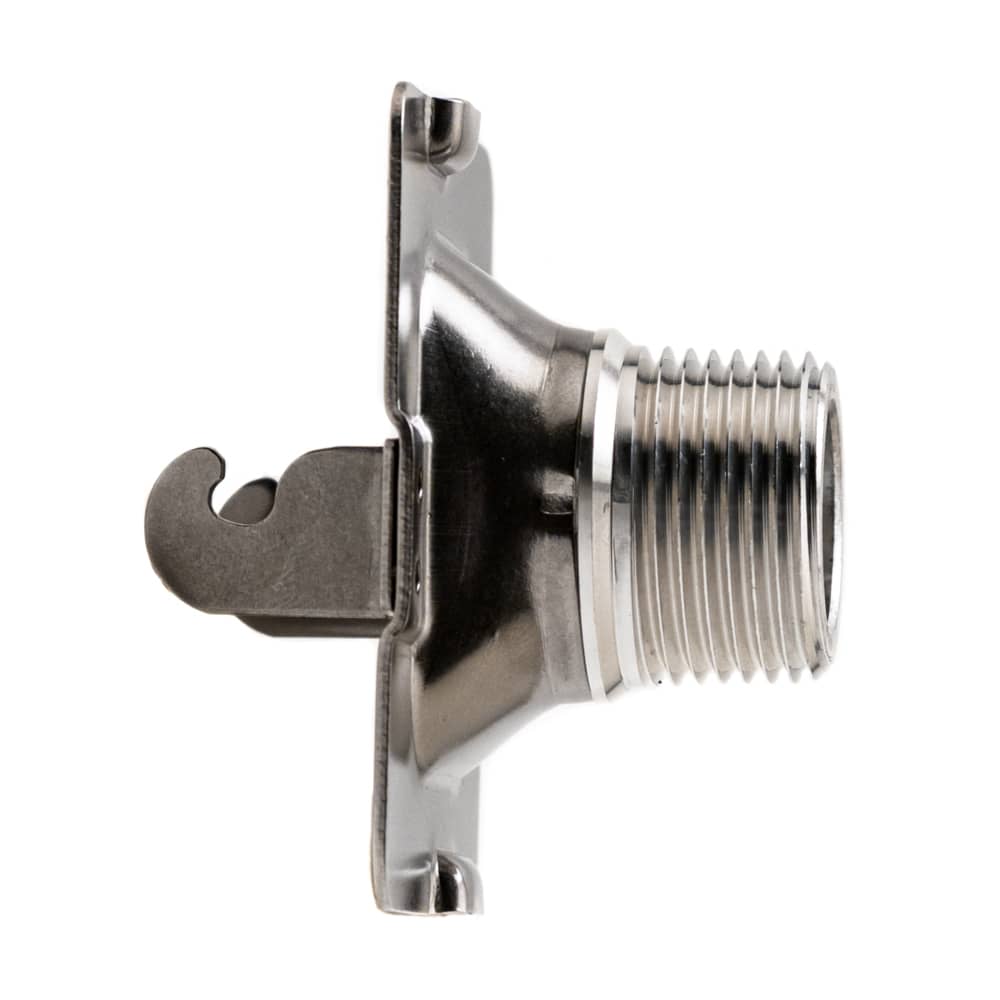

3/4 Threaded Billows Mounting Kit
Designed to screw into a 3/4 ball valve

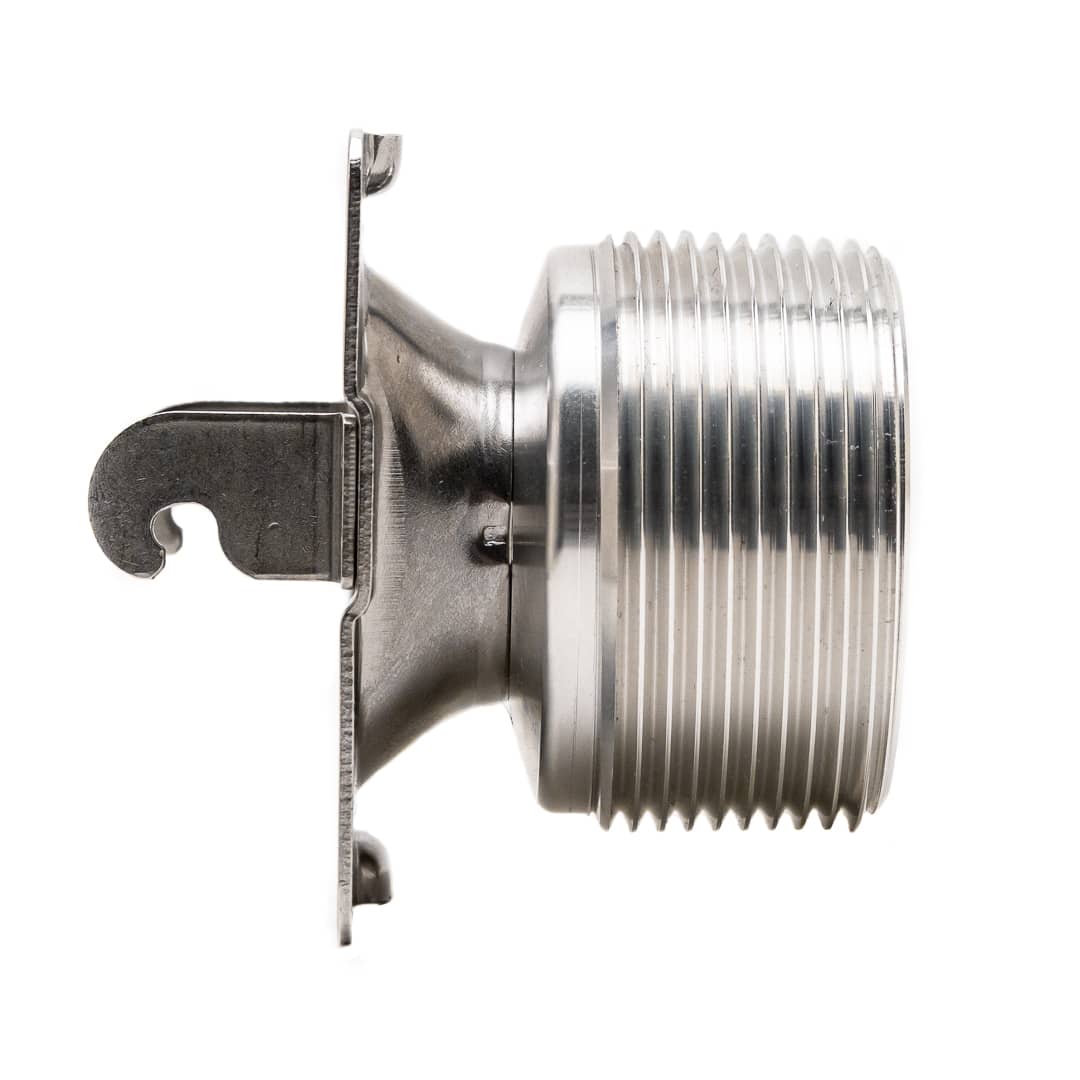

1.5 Threaded Billows Mounting Kit
Designed to screw into a 1.5 ball valve

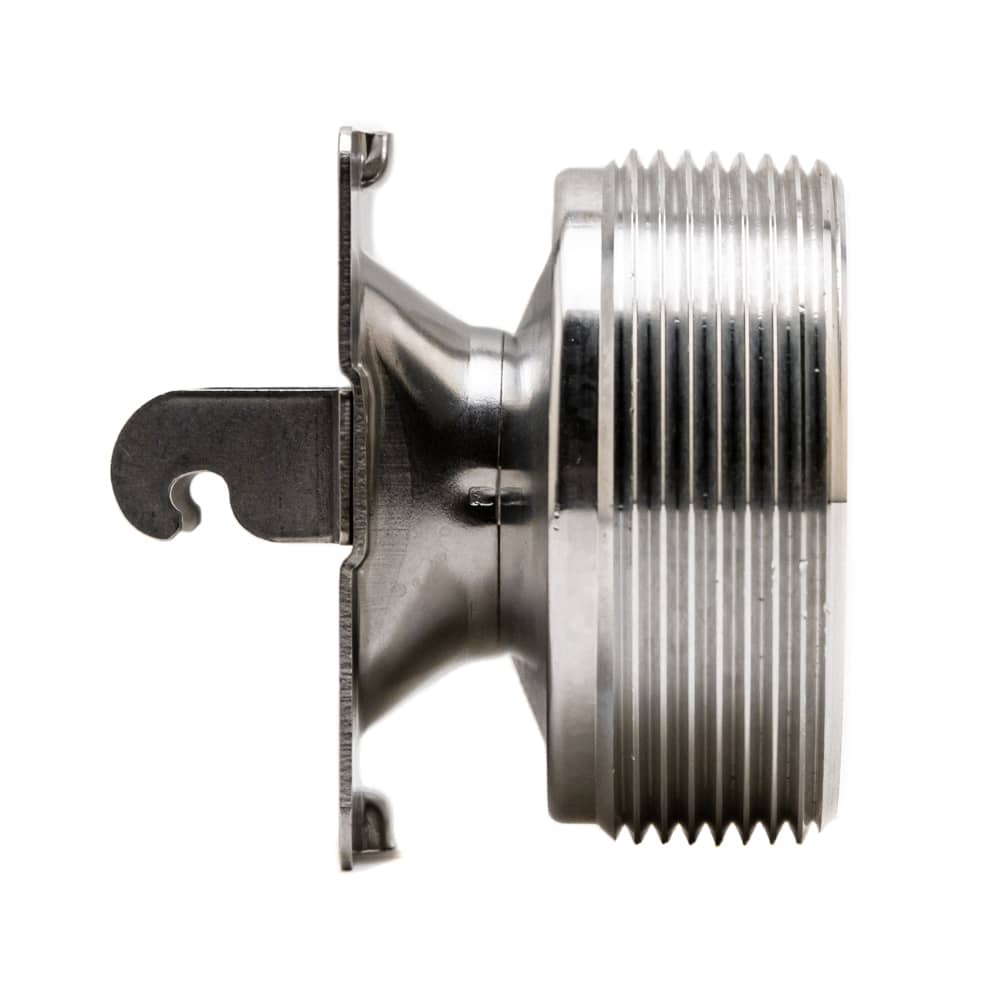

2 Threaded Billows Mounting Kit
Designed to screw into a 2 ball valve
